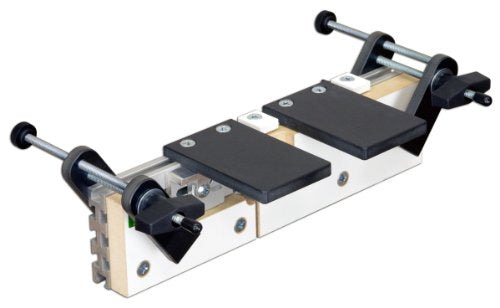

Woodhaven 4556 Portable Box Joint Jig

Woodhaven 4556 Portable Box Joint Jig

$282.18 USD
$282.18 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

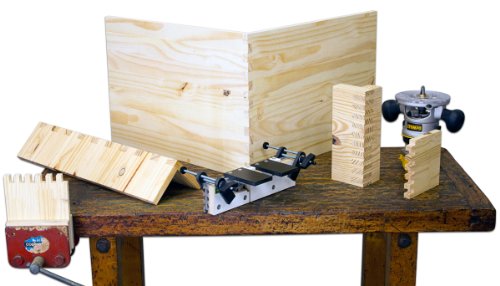

  • Our Portable Box Joint Jig works by hop-scotching the jig over the work, instead of like our standard 4555 Box Joint Jig where the work hop-scotches over the jig. This allows you to safely and accurately cut larger box joints on large workpieces that are too cumbersome or dangerous to do any other way.

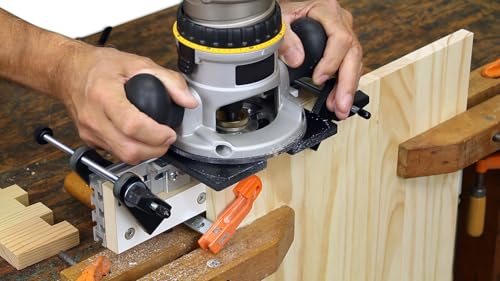

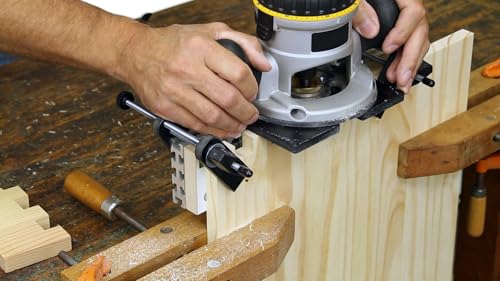

  • Includes replaceable MDF Sub-fences, a 12" Ultra Track aluminum fence and two built-in clamps. Workpiece is clamped vertically in a vise and the Portable Box Joint Jig hop-scotches over each cut, indexing its aluminum stops in the previous cut. You’ll need to supply a 6” clamp for use when making the first and last few cuts on the part that are out of range of the built-in clamps. See video on our website.

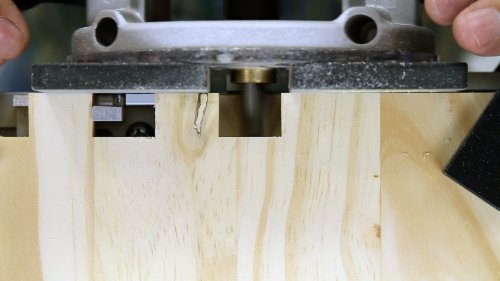

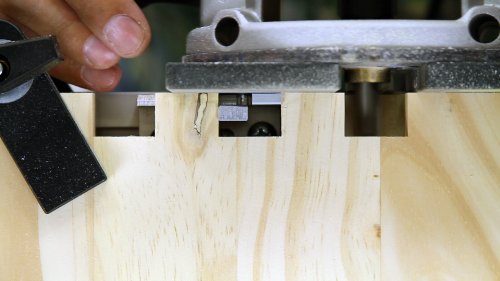

  • Includes both stationary and adjustable aluminum stops which are infinitely adjustable between 1/2” to 1-9/16” wide joints, minimum 1/2” deep. These index the jig accurately for each cut and prevent side-to-side jig movement. Also includes five Setup Jigs for 1/2”, 3/4”, 1”, 1-1/4” & 1-1/2” joints. Unlimited stock width.
  • Requires a 1/2" shank router, a 3/4" bushing and a 1/2" router bit, all not included. If using your own bushing and not our 5032K, make sure the nose isn’t over 3/8" long. Any 1/2” cutting diameter bit with a 1/2” shank will work, but we recommend a spiral upcut bit for best results. Always select the shortest cut length possible. For best results, incremental passes are recommended.
  • Lifetime guarantee against defects in material or workmanship. Made in the USA!

Low stock: 10 left

View full details
