No Welding Anvil Repair Boot Rusty Black Metal Step Railing 1" Post 4" Mount -Loose Rails- Hollow or Solid Posts Slip-Fit INTO Base -Bolts & Cover Kit Handrail Brackets

About this item

• IMPORTANT: Please measure steel posts carefully before purchasing your repair mount. Your railing must be removable for these handrail brackets to work. Your outdoor railing 1” posts can be hollow or solid to use this post Repair mount. What’s included is a base with flange tube with set screw(s) and 4 anchor bolts. Size reminder to measure your square post’s outer dimension- 1” x 1” to ensure compatibility with the flange tubes Inner dimension of 1 1/8” x 1 1/8”. These do not fit a 1 ¼” post inside and a 1 ½” post will not fit over this post mount. Made only for a 1” x 1” outer dimension existing handrail post. This allows it to pocket inside the repair mount.
• COST-EFFECTIVE: Offers an economic alternative to complete railing replacement. These black iron handrail brackets are perfect for those looking to improve their home's safety and functionality, maintaining structural integrity. No need to spend thousands to replace the existing rails. With these post repair mounts, you can rest assured that your railings will remain sturdy and safe for years to come. Custom orders welcome!

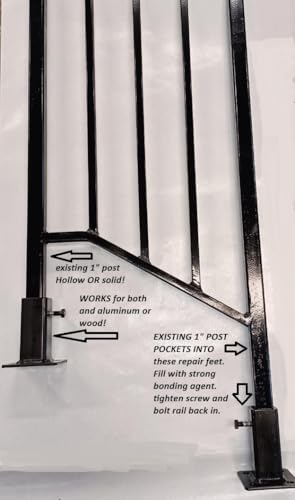

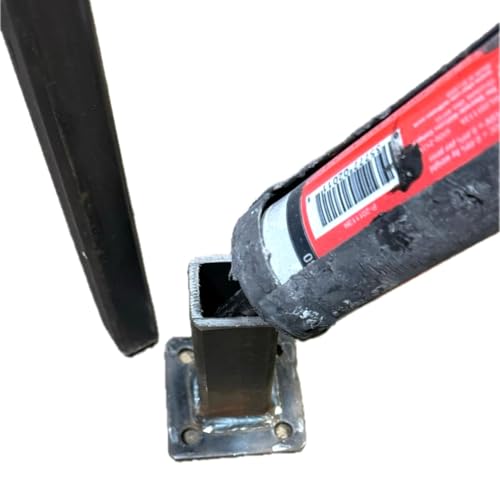

• EASY INSTALLATION: No welding required! These brackets fit over existing 1" x 1” outer dimension of a square rail posts for a quick repair. Works on your 1" x 1” outer dimension square legs-posts-banisters. Used with either Hollow or Solid square posts. Cut off the bad part, fill with a strong bonding agent, tighten set screws, bolt the metal plate down with the provided bolts and done! Recommend a 5/16” concrete bit for drilling holes
• MOUNTING: Base plate is 3" x 3" with (4) 3/8" holes and is designed for easy Hassle-free installation, providing a secure stable post mount for your outdoor railings, handrails, deck, fence and guardrails. Base plates also cover up existing holes in the concrete. 4-Anchor bolts provided 5/16” x 1 ½”

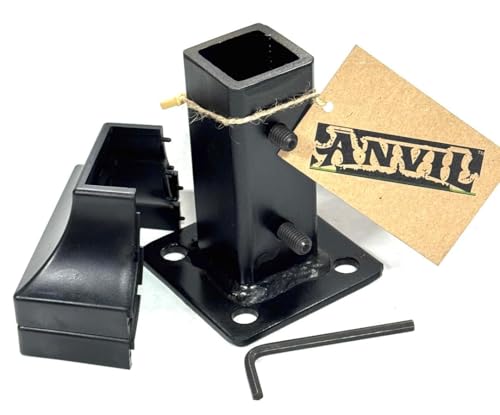

• INCLUDES: 4" high -1 1/2" square flange tube is the outer dimension. The inner dimensions is 1 1/8” x 1 1/8” x 4" high repair length Rail post bracket with set screw(s) and all necessary mounting hardware. Primed and painted Black ready to install upon arrival!
• REMINDER: These repair mounts accept a 1” x 1” outer dimension post. Inside them. You can use either Hollow square tube metal posts or solid square steel posts. Both work! They will not fit a 1 ¼” post inside them. They will not fit a 1 ½” post inside them and a 1 ½” post will not fit over this mount. Use of these railing repair brackets require the rail to be out of the concrete to be installed properly.
• WHAT SIZE TO ORDER: The best thing to do is measure the post leg right below the bottom horizontal bar of the railing to the cement. Normally anywhere from 3” – 8” depending on the post placement on the steps. Trim off the bad part but you will need at least a 2”-3” stub to insert into the post railing mounts. This will allow the set screw to grab the existing 1” post once inserted inside and secure the new handrail bracket.
• PATENTED DESIGN: This innovative handrail bracket solution is protected by a pending patent. Manufacturer: Made in the USA by Anvil Welding & Fabrication LLC, a reputable and experienced manufacturer in Pennsylvania, you can trust in the quality and craftsmanship of these iron products. Welded by certified welders and blacksmiths. Trademark Anvil, Copyright registered

Overview

• Color: Black
• Brand: ANVIL
• Material: Metal, Mild Steel
• Item dimensions L x W x H: 4 x 1.5 x 1.5 inches
• Item Weight: 1.1 pounds
