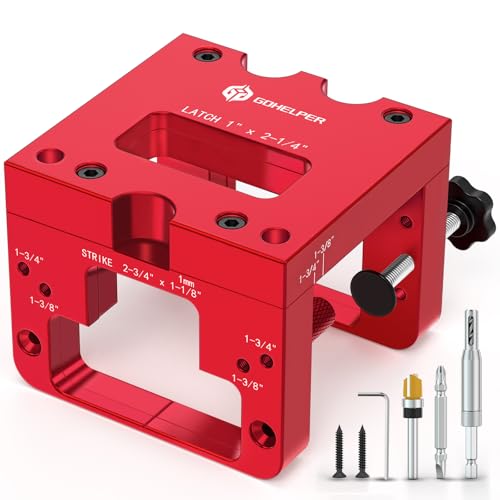

Door Latch and Strike Plate Mortise Tool for Router, Door Latch Jig

Door Latch and Strike Plate Mortise Tool for Router, Door Latch Jig

$82.98 USD
$82.98 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • 【Precision Latch & Strike Plates Router Template】This precision-machined aluminum template delivers clean and accurate latch and strike plate mortises with consistent depth — no experience needed. Unlike plastic alternatives that cause uneven cuts and misalignment, our template eliminates guesswork for professional-grade results.

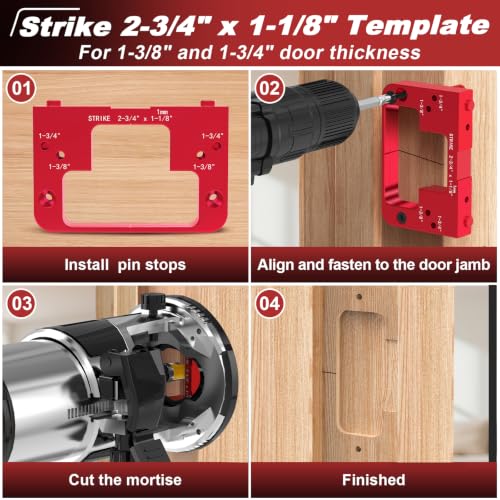

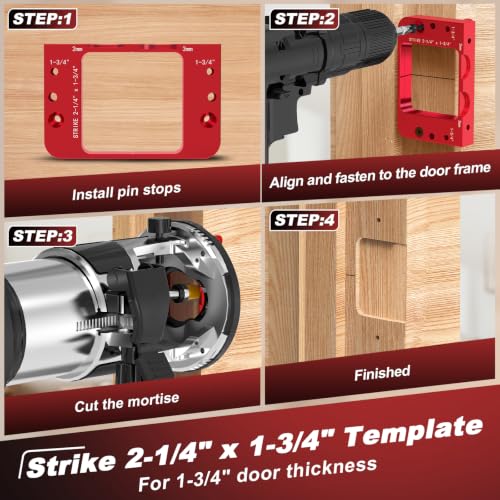

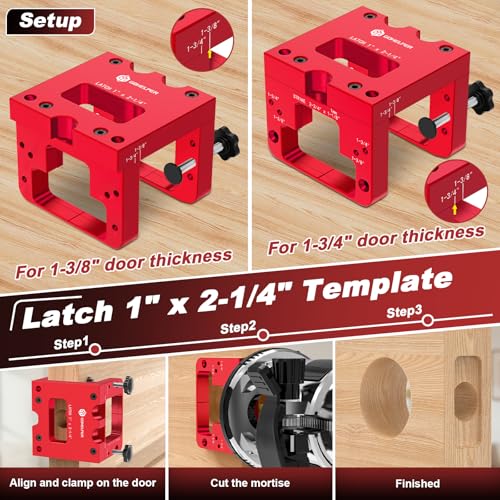

  • 【3 Templates for Latch & Strike Plates】Select the correct template for your job. For the latch plate, clamp the template to the door; for the strike plate, fasten it to the door jamb (this will leave two small holes). Route along the template edge, and you'll get a perfect mortise. The kit includes 3 templates total: one latch plate template (1" × 2-1/4") and two strike plate templates (2-3/4" × 1-1/8" and 2-1/4" × 1-3/4").
  • 【Note】Not for drilling knob or latch holes. The center pocket on the door jamb for the deadbolt or latch must be cut separately using a drill bit or chisel. No tools are provided for this step. This kit also does not include a door hinge mortise template.
  • 【🔒 Patent-pending Design】Gohelper door latch jig is a one-of-a-kind innovation, and any unauthorized copy will face legal consequences.
  • 【⭕ Door Jamb Operating Notes】If the door frame has already been installed with casing, the pin stop may not seat properly against the jamb edge. In such cases, remove the pin stop and adopt alignment by marking (e.g., scribing a reference line) for positioning.

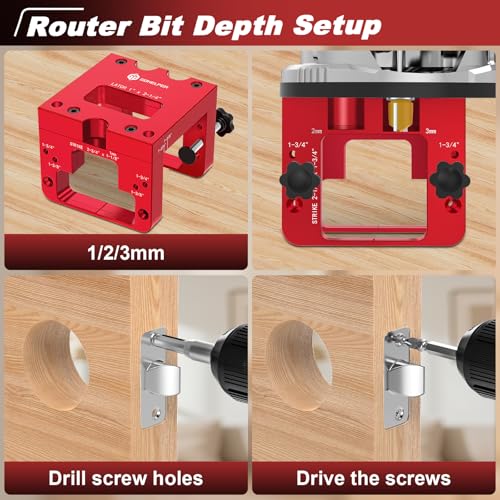

  • 【Fits 1-3/8" & 1-3/4" Door Thickness】Achieve flawless mortises on most standard doors or door jambs (1-3/8" or 1-3/4") with this high-grade 6061 aluminum alloy tool. Includes 1mm, 2mm & 3mm setup gauges — dial in your cutting depth in seconds for zero guesswork and perfect consistency.

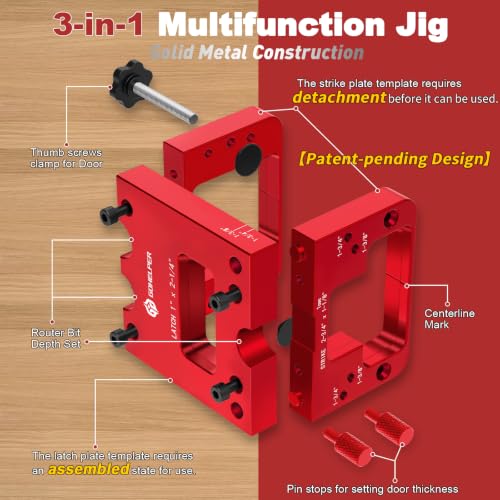

  • 【✅ Confirm Size Compatibility】Please ensure the template is compatible with your hardware. A router is required (not included). The jig must remain fully assembled when setting the cutting depth and when routing the latch plate mortise. The strike plate template must be detached from the jig and used separately.

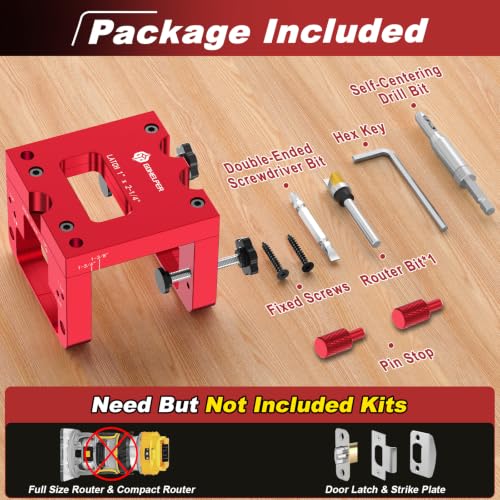

  • 【Package Included】 3-in-1 jig (includes 3 templates: 1 for latch plate, 2 for strike plates) with 2 pin stops, router bit x1, self-centering drill bit x1, double-ended screwdriver bit x1, fixed screws x2, hex key x1, and user manual x1.

Low stock: 10 left

View full details
